Reverse doors in an concealed frame


WHAT MAKES THIS DOOR SET UNIQUE?

  • The doorway remains without a visible frame, and the door opens in reverse, i.e., into the wall thickness.
  • The door is flush with the surrounding wall, blending seamlessly and separated only by a narrow gap.

HOW DOES THE CONCEALED FRAME WORK?

  • This is a special aluminum frame installed into the wall. The wall's surface is finished with plaster up to the edge of the integrated frame. The concealed frame under the plaster creates sturdy support for the passageway edge and the door panel. The door is separated from the wall by a narrow gap.
  • This clean design effect is enhanced by concealed hinges hidden within the frame structure when the door is closed.
  • The set includes a magnetic lock.

APPLICATION POSSIBILITIES

  • Suitable combination with flush doors - you are not limited by the door’s position relative to the wall or the direction of opening.
  • High utility value and clean design
  • The door is flush with the wall from the visible side
  • Proven functionality, tested in labs
  • Combination of standard and reverse opening options
  • Compatible with frameless construction pockets for sliding doors
  • Suitable for walls and plasterboard partitions (minimum wall thickness: 10 cm), also available for atypical door heights

Price from: 20,100 CZK excluding VAT / SET


The set price includes:

1. Price of doors selected by the customer   from 2,950 CZK
2. Price of the concealed frame   from 12,750 CZK
3. Additional fee including concealed hinges Tectus (silver),
anchoring beams, magnetic lock, door adjustments, and leveling compound		   from 4,400 CZK
    from 20,100 CZK
  1. Price of reverse doors corresponds to swing doors (CPL, POLYPROPYLENE, EBC LACQUERED, WHITE LACQUERED - QUATRO series, PUR LACQUERED) see category Interior Doors.
    Exceptions:
    not available for frame doors

  2. Price of the concealed frame:
    a) concealed frame in silver finish 12,750 CZK
    b) concealed frame in matte black finish 15,410 CZK

    Additional fee including concealed hinges, magnetic lock, anchoring beams, leveling compound, and door adjustments:
  3. a) fee with silver hinges 4,400 CZK
    b) fee with matte black hinges 5,400 CZK

These prices do not apply to the SLIM series. Reverse doors in the SLIM concealed frame: details and prices here.


Available in CPL laminated, CPL supermat 0.15 mm, EBC lacquered, and premium lacquered finishes (Basic and Quatro series).


Note: When reverse doors are opened, negative pressure may form in the room, causing a sound effect and slightly impeding the door's operation.



Counter plate for magnetic lock of reverse doors Reverse door opening inward

HOW TO PREPARE CONSTRUCTION OPENINGS?

Recommended construction opening dimensions for reverse concealed frame:

Width relative to nominal door size + 16.1 cm
Height relative to nominal door size + 7.85 cm
Nominal door width options 60 / 70 / 80 / 90 cm
Nominal door height options 197 / 209.7 cm
Minimum wall thickness 7.5 cm

Example: For a door width/height of 80/197 cm, prepare an opening of 96.1 / 204.85 cm

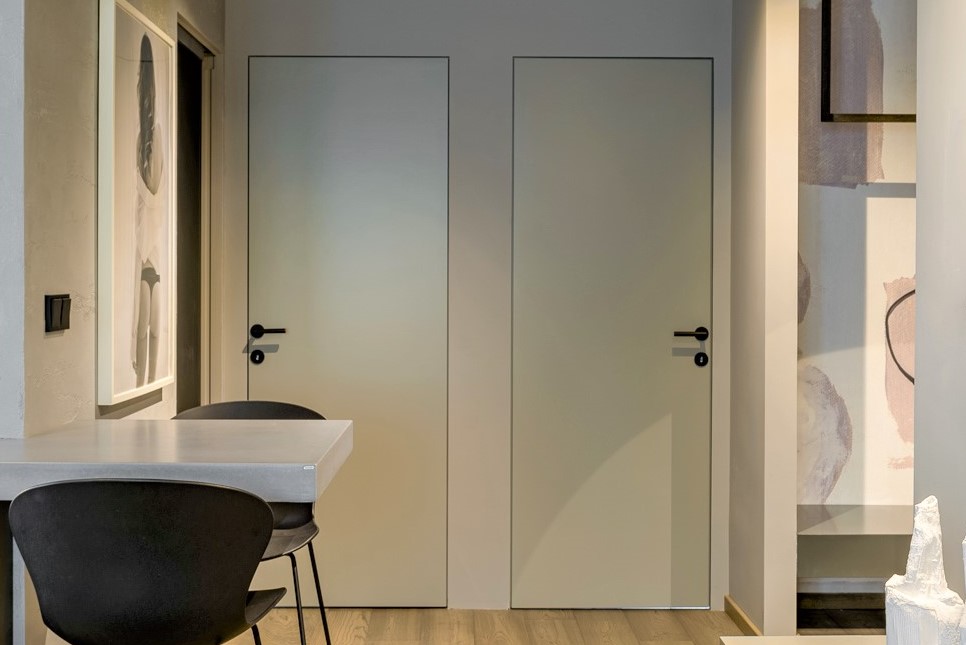

COMBINATION WITH FLUSH DOORS

When closed, they look identical and are flush with the frame, but due to different construction, they open in the opposite direction. This combination allows placing reverse-opening doors alongside flush-opening doors in the same hallway without compromising design.




×
